Sulfonic Acid Curing Agent for Self-hardening Furan Resin

Short Description:

Physical properties:

Light brown transparent liquid, crystallization temperature ≤-15℃.


Product Detail

Product Tags

Packaging and Storage

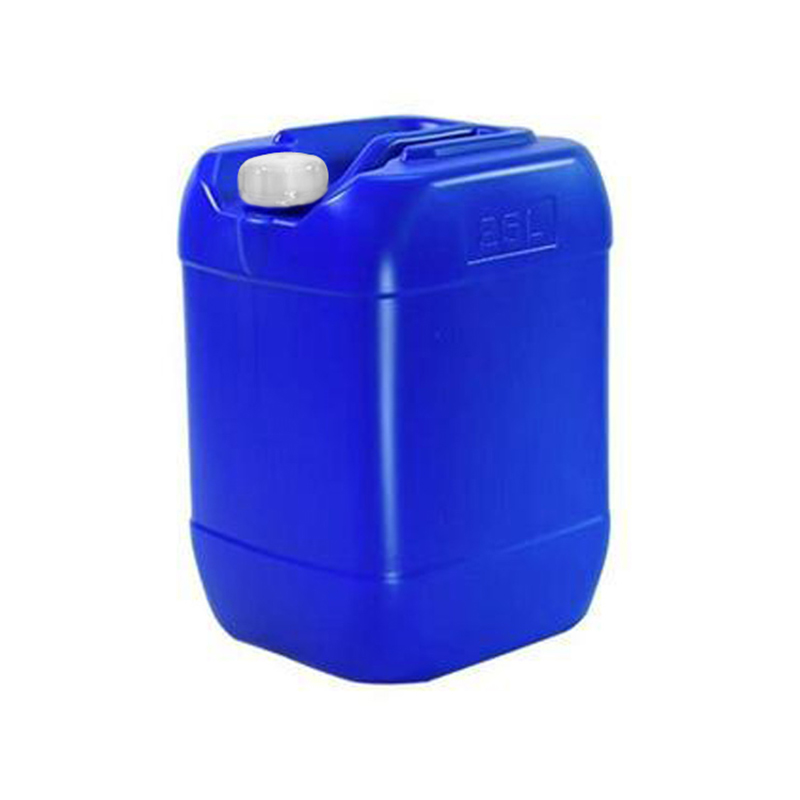

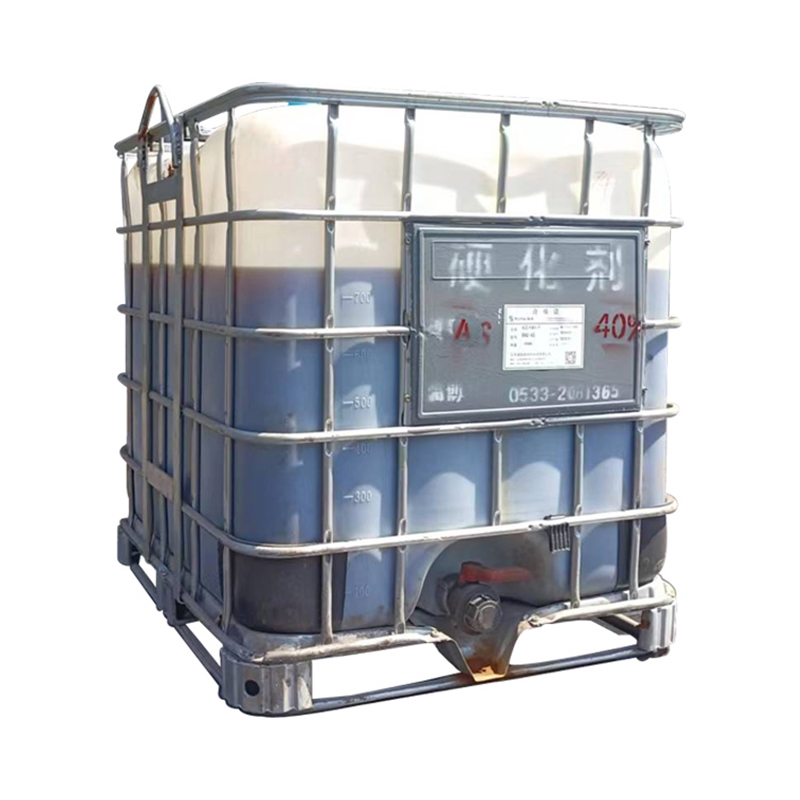

Sealed packaging in plastic drums, net weight 25kg or 1000kg. Please store in a ventilated and cool place, avoid direct sunlight, and prohibit open flames.

It is strictly forbidden to directly mix with resin to avoid explosion accidents.

Please wear labor protection equipment when using it. If come into direct contact with your body, please immediately wash it with clean water and receive medical treatment if necessary.

2
3

Specifications / Model

MODEL Density

g/cm3

Viscosity

mpa.s≤

Acidity in sulfuric acid % Free sulfuric acid %≤ Applicable sand temperature range℃ Applicable scope
RHG-04 1.10-1.15 10-15 25 4-6 25--30 Gray Ductile Iron Casting
RHG-03 1.15-1.18 15-18 30 6-8 20-25 Gray Ductile Iron Casting
RHG-O9 1.16-1.20 16-20 35 8-9 15-20 Gray Ductile Iron Casting
RHG-10 1.25-1.30 20-25 40 9-11 0-10 Gray Ductile Iron Casting
RHG-12 1.30-1.35 20-25 45 12-14 below zero 5-10 Gray Ductile Iron Casting
RHG-16 1.35-1.40 25-30 50 16-18 below zero 10-15 Gray Ductile Iron Casting
RHG-AZ 1.35-1.40 20-25 Special for AB curing agent intelligent controller Cast steel special
RHG-BZ 1.15-1.20 10-13
RHG-A 1.16-1.20 16-20 Gray Ductile Iron Casting
RHG-B 1.10-1.15 10-13

AB Curing Agent Intelligent Controller

Keep the demoulding time constant: within the sand temperature 0-60 ℃, to achieve a constant mold release. Reduce head and tail sand.
The curing speed and the amount of addition are automatically adjusted according to the sand temperature and weather temperature.
Only high and low acidity sulfonic acid curing agent are needed throughout the year, which is convenient for production management.
Optimize the resin sand process: maintain the best ratio of curing agent, give full play to the effectiveness of the resin, reduce the amount of addition, improve the quality of the core, reduce casting waste, and increase economic benefits.
The addition amount of resin and curing agent, the flow rate of sand realize the screen display more intuitively.
Realize one-click conversion of resin addition amount of molding sand backing sand and surface sand, easy to operate, economical and practical, reduce resin addition amount.
